Beschreibung

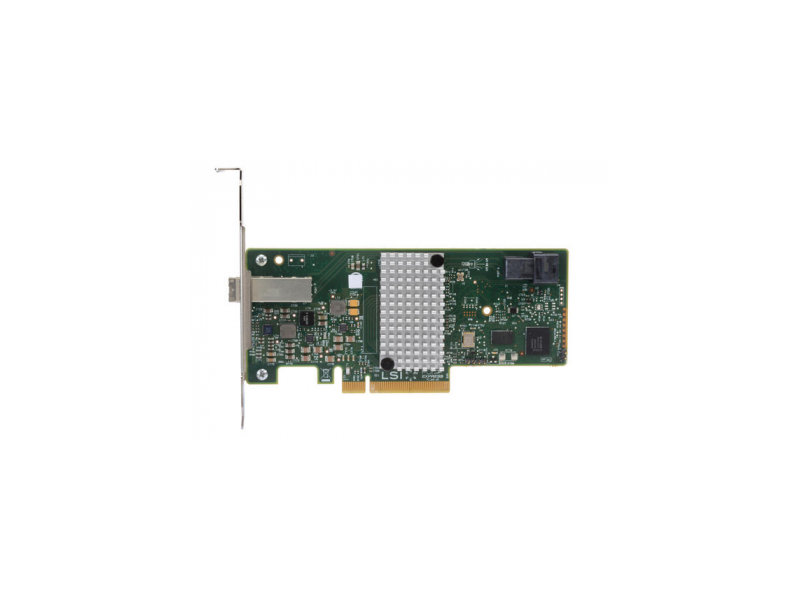

Entry-level low-cost 4 Internal and 4 External Ports with 12G SAS-3 Mirroring, Striping and JBOD.

- One internal mini-SAS HD SFF8643 SAS/SATA connectors for connectivity inside the server.
- One external mini-SAS HD SFF8644 SAS/SATA connectors for connectivity to external storage.
- x8 PCI Express* Generation 3 interface for fast communication with the server board.
- LSI* SAS3008 IOC controller providing SAS 3.0 technology including 12Gb/s data transfer and compatibility with SAS or SATA drives.
- Blinking green heartbeat LED to indicate the card is ready and capable for general activity.

- Essential performance and scalability: Supplies PCI Express* Gen 3 architecture with over 1 million IOPs; employs SAS/JBOD connectivity with support of up to 244 physical devices.
- Internal and external connectivity: Four internal ports allow for a RAID array within a system. Four external ports allow for connecting to a JBOD (Just a Bunch of Disks) or a SAS switch.
- Cost effective data protection: Provides low-cost RAID 0, 1, and 1E for entry-level server and workstation environments where high-performance and reliable data protection are required.
- SAS or SATA Storage: Connect SAS or SATA devices within the array. Use SAS drives for speed, reliability and scalability; use high-capacity SATA drives for budget-friendly storage.

Technische Informationen

Technische Daten

Unterstützte Speicherlaufwerk-Schnittstellen:

SAS, Serial ATA III

Hostschnittstelle:

PCI Express x8

PCI-Express-Slots-Version:

3.0

PCI-Karten-Formfaktor:

Halbe Höhe (Niedriges Profil)

RAID Level:

0, 1, 10, 1E, JBOD

SSD-Unterstützung:

Ja

Chipsatz:

LSI3008

Datenübertragungsrate:

12 Gbit/s

Anzahl der unterstützten Geräte:

244

Unterstützte Transfergeschwindigkeit (Systemeigen):

12288 MB/s

Prozessor:

LSI3008

LED-Anzeigen:

Aktivität

Formfaktor:

Low Profile MD2 Card

Datenübertragungsrate:

12288 Mbit/s

Produkttyp:

16

Verpackungsinhalt:

One RAID Adapter with full and low profile brackets

Unterstützt Windows-Betriebssysteme:

Ja

Unterstützt Mac-Betriebssysteme:

Nein

Unterstützte Linux-Betriebssysteme:

Ja

Marktsegment:

SRV

RAID ARK ID:

76067

Geboren am:

Q3'13

Startdatum:

2013-07-25T00:00:00

PCI Express-Host-Schnittstelle:

PCIe x8 Gen3

Produktbezeichnung:

Intel RAID Controller RS3FC044

RAID-Steckverbinderausrichtung:

Side

Status:

End of Life

Externe Anschlüsse:

4

Interne Anschlüsse:

4

Unterstützte Geräte:

SAS/SATA
